This is a changelog topic for suntech protocol. The list of supported devices Sunlab (Suntech) ST600V Sunlab (Suntech) ST600R Sunlab (Suntech) ST630 Sunlab (Suntech) ST640 Sunlab (Suntech) ST640LC Sunlab (Suntech) ST650 Sunlab (Suntech) ST940 Sunlab (Suntech) ST310U Sunlab (Suntech) ST310UC2 Sunlab (Suntech) ST330 Sunlab (Suntech) ST340 Sunlab (Suntech) ST340LC(4pin) Sunlab (Suntech) ST340R Sunlab (Suntech) ST340UR Sunlab (Suntech) ST300 Sunlab (Suntech) ST300A Sunlab (Suntech) ST300R Sunlab (Suntech) ST300B Sunlab (Suntech) ST300V Sunlab (Suntech) ST300C Sunlab (Suntech) ST300K Sunlab (Suntech) ST300P Sunlab (Suntech) ST300F Sunlab (Suntech) ST300D Sunlab (Suntech) ST300H Sunlab (Suntech) ST400 Sunlab (Suntech) ST410 Sunlab (Suntech) ST500 Sunlab (Suntech) ST3300 Sunlab (Suntech) ST3310 Sunlab (Suntech) ST3330 Sunlab (Suntech) ST3330A Sunlab (Suntech) ST3340 Sunlab (Suntech) ST3340LC Sunlab (Suntech) ST8300V Sunlab (Suntech) ST8310 Sunlab (Suntech) ST3940 Sunlab (Suntech) ST3940B Sunlab (Suntech) ST4280 Sunlab (Suntech) ST4290 Sunlab (Suntech) ST4300 Sunlab (Suntech) ST4310 Sunlab (Suntech) ST4315 Sunlab (Suntech) ST4315B Sunlab (Suntech) ST4330 Sunlab (Suntech) ST4340 Sunlab (Suntech) ST4500 Sunlab (Suntech) ST4505 Sunlab (Suntech) ST4910 Sunlab (Suntech) ST4345R Sunlab (Suntech) ST4345LB

Two Suntech devices added: ST3940 and ST3940B

Suntech protocol updated: 1. ST600R : MSR command reply parsing fixed 2. ST310U : ALT packet parsing fixed

Suntech protocol updated: ST310U : gsm.lac and gsm.bsic parameters parsing fixed ST410 : ALT report parsing fixed

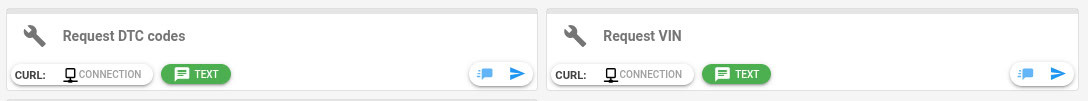

New settings added for Suntech ST600V , ST600R , ST630 , ST640 , ST640LC devices. Actions tab: Request Status and Reboot Input/Output tab: Enable/Disable Output 1 , Output 2 and Output 4

New settings Odometer and Hour Meter are added on Actions tab Applicable for the following devices Suntech ST600V Suntech ST600R Suntech ST640 Suntech ST640LC Suntech ST630 Suntech ST310U Suntech ST340 Suntech ST340LC(4pin) Suntech ST340R Suntech ST300 Suntech ST300A Suntech ST300R Suntech ST300B Suntech ST300V Suntech ST300C Suntech ST300K Suntech ST300P Suntech ST300F Suntech ST300D Suntech ST300H

Suntech ST300R : fixed parsing of GSM CELL field

Assigned headers are supported for suntech protocol. Applicable for the devices that work over universal protocol , e.g. Suntech St4340

Suntech ST3940 and Suntech ST3940B : fixed parsing of PWR_VOLT field for Status, Emergency and Alert reports. Now this field's value is stored into parameter battery.level

[Changelog] suntech protocol

namo

Suntech protocol updated: universal STT report parsing improved: added processing of assigned headers' empty values.

YuryAheichyk

YuryAheichyk changes applied, can.dtc.strings and can.dtc.objects parameters removed

baja

New device type added: ST4345LB

namo

New device type is supported: Sunlab ST4280

YuryAheichyk

Added VIN, AVIN reports parsing

namo

Suntech protocol is updated:

Supported responses of REQ Progam Command - RRE and and USP
Added device type ST4505

namo

Suntech protocol is updated: the following Assign Headers of the Universal protocol are supported:

Small: 83, 85, 89 - 93
Medium: 89, 90
Large: 57 - 60, 89 - 98

namo

Suntech protocol is updated: fixed parsing of Large Assign Header 60 of Universal protocol.

namo

Suntech protocol is updated: remastered parsing of PID report of Universal protocol.

namo

Suntech protocol is updated: implemented parsing of raw OBD PIDs values from assign headers of STT and ALT reports for ST4505 device.

OBD PIDs are parsed according to the device setting OBD PIDs, System tab:

Is setting is not set, then raw values are stored as obd.pid.1 - obd.pid.10 flespi parameters.

namo

New device type is supported: Sunlab (Suntech) ST4315B
