7 months later

Arnavi protocol updated:

  • new parameters added:
    • tags 10-17 IMPS_0 - IMPS_7 are registered as counter.impulses.1 - counter.impulses.8
    • tags 20-27 FREQ_0 - FREQ_7 are registered as frequency.counter.din.1 - frequency.counter.din.8
    • tags 30-37 VOLT_0 - VOLT_7 are registered as ain.1 - ain.8
  • bug fixed:
    • tag 9 Device status, bits 24-31 external voltage - parameter external.powersource.voltage in flespi - was mistakenly multiplyed by 10. Now it's parsed correctly.
    2 years later

    Arnavi protocol updated: added tags 50 - 79. Mapping to flespi parameters is below:

    • tag 50 can_log_number - can.log.number
    • tag 51 can_security_state - registered bitwise:
      • bit0 - bit2 - car.remote.control.state
      • bit6 - can.module.sleep.mode
      • bit8 - can.driver.door.status
      • bit9 - can.passenger.door.status
      • bit10 - can.trunk.status
      • bit11 - can.hood.status
      • bit12 - can.handbrake.status
      • bit13 - can.pedal.brake.status
      • bit14 - can.engine.status
      • bit15 - can.webasto.status
      • bit16 - can.engine.ignition.status
      • bit17 - factory.alarm.actuated.status
      • bit18 - can.car.closed.remote.status
      • bit19 - can.ignition.key.status
      • bit20 - can.dynamic.ignition.status
      • bit21 - can.rear.left.door.status
      • bit22 - can.rear.right.door.status
    • tag 52 CAN - total engine operating time (hours) - can.engine.motorhours
    • tag 53 CAN - full run TC (km) - can.vehicle.mileage
    • tag 54 CAN - full fuel consumption (l) - can.fuel.consumed
    • tag 55 CAN - the fuel level in the tank (%) - can.fuel.level
    • tag 56 CAN - the fuel level in the tank (l) - can.fuel.volume
    • tag 57 CAN - engine speed (rpm) - can.engine.rpm
    • tag 58 CAN - engine temperature (C) - can.engine.temperature
    • tag 59 CAN - Vehicle speed (km / h) - can.vehicle.speed
    • tag 60 CAN - the pressure on the axle 1 (kg) - can.axle.weight.1
    • tag 61 CAN - the pressure on the axle 2 (kg) - can.axle.weight.2
    • tag 62 CAN - the pressure on the axle 3 (kg) - can.axle.weight.3
    • tag 63 CAN - the pressure on the axle 4 (kg) - can.axle.weight.4
    • tag 64 CAN - the pressure on the axle 5 (kg) - can.axle.weight.5
    • tag 65 CAN - can_accident flags - registered bitwise:
      • bit6 - can.passenger.seatbelt.indicator.status
      • bit7 - can.driver.seatbelt.indicator.status
      • bit8 - can.esp.indicator.status
      • bit9 - can.glow.plug.indicator.status
      • bit10 - can.soot.filter.indicator.status
      • bit11 - can.electronic.power.control.status
      • bit12 - can.parking.lights.status
      • bit13 - can.low.beam.status
      • bit14 - can.high.beam.status
      • bit16 - can.check.engine.indicator.status
      • bit17 - can.lights.failure.indicator.status
      • bit18 - can.tire.pressure.low.status
      • bit19 - can.wear.brake.pads.indicator.status
      • bit20 - can.warning.indicator.status
      • bit21 - can.abs.failure.indicator.status
      • bit22 - can.fuel.level.low.indicator.status
      • bit24 - can.stop.indicator.status
      • bit25 - can.oil.pressure.indicator.status
      • bit26 - can.coolant.level.low.indicator.status
      • bit27 - can.handbrake.indicator.status
      • bit28 - can.battery.indicator.status
      • bit29 - can.airbag.indicator.status
    • tag 66 CAN - Status Flags agricultural equipment - can.agro.equipment.bitmask
    • tag 67 CAN - The fluid level AdBLUE (%) - can.adblue.level
    • tag 68 CAN - The fluid level AdBLUE (L) - can.adblue.volume
    • tag 69 CAN - driving_state:
      • byte1 - can.throttle.pedal.level
      • byte2 - can.engine.load.level
      • byte3&4 - can.movement.state.bitmask
    • tag 70 LLS_0:
      • byte1&2 - lls.value.1
      • byte3 - lls.temperature.1
      • byte4 - ble.asset.battery.voltage.1
        ...
    • tag 79 LLS_9:
      • byte1&2 - lls.value.10
      • byte3 - lls.temperature.10
      • byte4 - ble.asset.battery.voltage.10
    a month later

    The protocol will be affected by the change in type of parameters gsm.mcc and gsm.mnc to be installed in 2 weeks - May 23rd, 2022: both parameters that now have type "string" will be stored as "number". The possible leading zeroes in MNC will be ignored (e.g. the value "01" will be stored as 1).

      6 months later

      Arnavi protocol is updated: the following parameters are renamed:

      • can.driver.door.status is renamed to can.front.left.door.status
      • can.passenger.door.status is renamed to can.front.right.door.status

      For backward compatibility both old and new parameters will be registered for 1 more week. Old parameters can.driver.door.status and can.passenger.door.status will be removed 01-Nov-2022.
      Please, switch your applications to the new names of parameters until then.

        8 days later

        Arnavi protocol is updated - removed old parameters after renaming, see namo

          a year later

          Parsing of the packet "CONFIRM_THE_COMMAND2" with index 0x09 is added.

            5 months later

            Added 0x25 (WIFI) protocol version

              10 months later

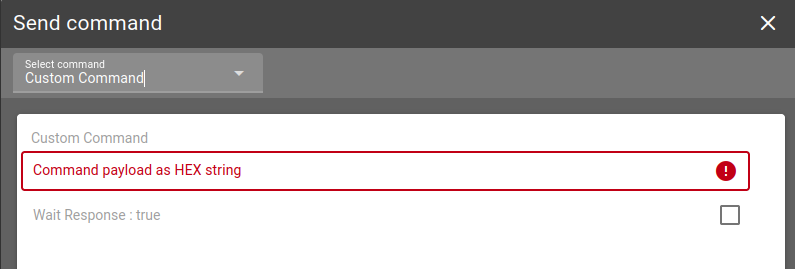

              Optional field wait_response added for custom command
              when false, command is marked as executed right after being sent to TCP connection
