This topic will be used to post changes in eview protocol implementation. The list of supported devices: Eview EV-04 Eview EV-05 Eview EV-07B Eview EV-08 Eview EV-09 Eview EV-201 Eview EV-202 Eview EV-206M Eview EV-201M Eview EV-201G Eview EV-06

Custom command added to eview protocol Slight change in naming scheme of Alarm Code (0x02) parameters alarm.panic.stop.status renamed to alarm.panic.stop alarm.panic.status renamed to alarm.panic.start Both parameters are stored now, on 08 December deprecated parameters will be removed.

Alarm code table code bits 26 to 29 are parsed to boolean parameters geofence.status.1 to geofence.status.4

vehicle.state and vehicle.state.bitmaks parameters added for Alarm code bits. It will allow our users to apply any logic based on alarm bit values Configuration message "Get Timestamp" 0x12 - now has correct response with the timestamp

Settings for phone numbers added for EV-04 device type Slight change in parameter naming scheme for amber, welfare and fall alerts to avoid overwriting of alarms starts and stops which are both present in one packet: welfare.alarm.status is splitted to welfare.alarm.start and welfare.alarm.stop amber.alarm.status is splitted to amber.alarm.start and amber.alarm.stop fall.alarm.status is splitted to fall.alarm.start and fall.alarm.stop Both parameters are stored now, on 08 December deprecated parameters will be removed.

Wrong parsing detected: movement.status does not reflect bits for motion alerts carefully so movement.status = false will be renamed to no.motion.alarm = true movement.status = true will be renamed to motion.alarm = true Both parameters will be registered until December 27th. Setting for motion alert added for EV-04 device type

Settings added: IP&port time interval continue locate time parameter

baja parsing change applied New settings implemented: Working mode No Disturb Reboot Find me

Eview protocol is updated: changed format of wifi.mac.address parameter. Old format: 101331DDBA41 New format: 10:13:31:dd:ba:41

The protocol will be affected by the change in type of parameters gsm.mcc and gsm.mnc to be installed in 2 weeks - May 23rd, 2022: both parameters that now have type "string" will be stored as "number". The possible leading zeroes in MNC will be ignored (e.g. the value "01" will be stored as 1).

Eview protocol is updated: fixed parsing of New wifi loc info 0x19 key of Data Command 0X01 for Eview EV-07B

[Changelog] eview protocol

YuryAheichyk

Charging base location setting added

YuryAheichyk

YuryAheichyk Changes applied

YuryAheichyk

Added SMS password configuration field for Eview devices
The SMS password will be added to the SMS command text during execution

YuryAheichyk

Fixed Call 1 Button Settings setting execution

namo

Eview protocol updated: timestamp for key 0x23 (BLE Location) is taken now from key 0x24 (General data), if possible. The update is applicable for EV-07B devices.

namo

Eview protocol updated: for Eview EV-07B devices parameter timestamp.key is added for all messages that are registered from 0x01 Data Command Key's.

timestamp.key is a synthetic parameter that is calculated based on the timestamp reported by device, packet sequence number and sequential number of the Key information in the 0x01 Data Command packet, that prevents merging of different messages with the same timestamp in the device's storage.
Read more about this parameter here.

baja

added support for Health Data 3rd Device messages (packet 0x64) with heart.rate, spo2.rate, perfusion.index, blood.pressure.systolic, and blood.pressure.diastolic parameters

YuryAheichyk

Added GEO Alert Detect configuration setting for EV-04, EV-05

namo

Eview protocol is updated: parsing of Wifi and Bluetooth MAC addresses is refactored.

namo

Eview protocol is updated: Firmware upgrade action setting is remastered to be a command.
The firmware_upgrade command is available for EV-07B, EV-201M, EV-206M device types.

namo

Eview protocol is updated: the following setting are added for EV-06 device type:

Voice Prompt (System Params tab)
New Find Me (Actions tab)

baja

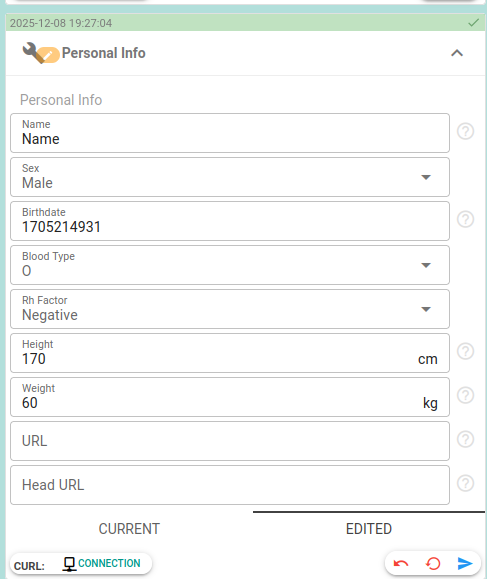

The Personal Info setting for EV-06 devices is now available in the flespi panel under Configuration tab. You can configure name, sex, birthdate, blood type, height, weight, and profile URLs directly through the UI instead of using custom binary commands.

baja

New device type added: Eview EV-12

YuryAheichyk

Improved Scan BLE setting: latitude and longitude are now optional — if not provided, device's last known GPS position from telemetry is used as fallback.

bird

New data command keys supported for EV-12:

0x67 Sub1G 3rd Device Status — parameters: rf.device.serial.number, rf.device.signal.rssi, button.pressed.status, fall.alarm.status, battery.low.status
0x32 BLE MAC List — parameters: ble.mac.address, bluetooth.signal.strength
0x33/0x34 iBeacon Beacon List — ble.beacons array (id, major, minor, rssi, company.id, rssi.1m)
0x35 Eddystone-UID Beacon List — ble.beacons array (id, rssi, uuid, tx.power)
0x60 BLE Heart Rate Service — parameters: heart.rate, heart.rate.trust.level, ble.sensor.battery.level
0x61 BLE Health Thermometer Service — parameter: body.temperature (IEEE-11073 float)
0x62 BLE Peripheral Connect State — parameters: bluetooth.peripheral.state, bluetooth.device.mac.address, ble.sensor.battery.level
0x64 Health Data extended with Infrared Thermometer (type 3) — body.temperature, and Weight Scale (type 4) — body.weight

bird

New setting added for EV-12: Continue Locating, Actions tab

bird

Fixed gsm.signal.dbm parameter: now stores actual dBm values (converted from raw signal strength index using standard AT+CSQ formula) instead of raw 0-31 index.

bird

New setting added for EV-04, EV-05, EV-06, EV-07B, EV-09, EV-202 and EV-12 devices: Extra Enable Control, System params tab — 30 boolean feature toggles including VoLTE disable, BLE controls, home alerts, power saving, beacon modes, and more.
